GABION

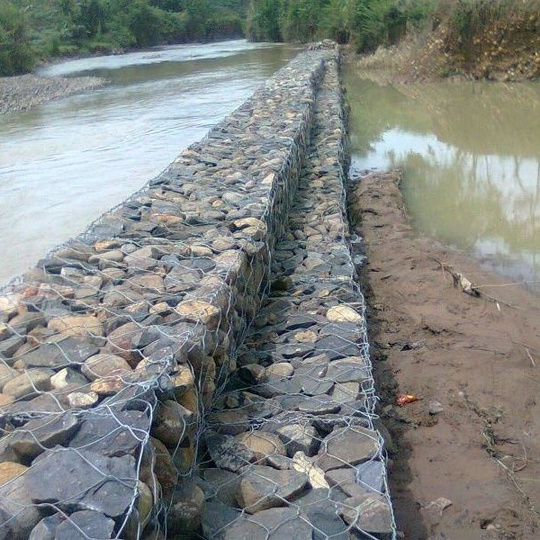

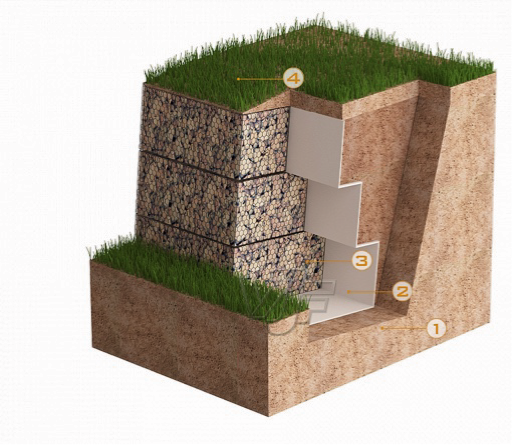

Gabions are rectangular baskets fabricated from a hexagonal mesh of heavily galvanized steel wire. They can be made from heavily galvanized or PVC-coated wire. Gabions depend mainly on the interlocking of the individual stones and rocks within the wire mesh for internal stability and their mass or weight to resist hydraulic and earth forces. The baskets are filled with rock and stacked atop one another to form a gravity-type wall. Gabions are considered to be a "hard" structural solution that has minimal habitat and aesthetic value.

GALVANISED WIRE GABION

HS CODE

MESH WIRE (MM)

MESH SIZE (CM)X(CM)

STD DIMENSION

L X W X H  (M)

2.7

8 X 10

3 X 1 X 1

GB311/2.4

2.4

8 X 10

3 X 1 X 1

PVC COATED WIRE GABION

HS CODE

MESH WIRE I.D/O.D     (MM)

MESH SIZE (CM)X(CM)

STD DIMENSION

 L X W X H  (M)

PGB311

2.2/3.3

8 X 10

3 X 1 X 1

If the size you inquire is not listed here, please inquire
